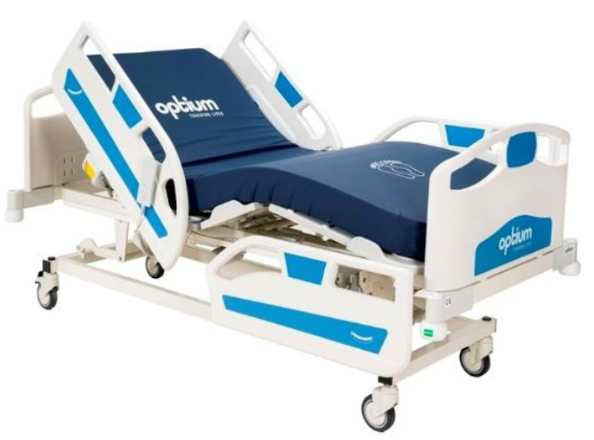

Optium Electronic Patient Care Bed 3 Motors • Hand Control Unit • Mattress Included

Electrical operated backrest, height and legrest adjustmentFowler and Vascular position
Hand remote control
 Detachable PP head and foot boards
 Auto-contour
 Easily cleanable, lockable and fold-away PP side rails
 Auto-regression system for backrest
 Easy removable ABS mattress platform
 Angle indicator for backrest
 Electrostatic powder coated metal frame
 Footrest adjustment by ratchet
 Height adjustable IV pole
 Protective plastic corner bumpers
 125mm diagonal lockable castors
 125mm central lockable castors (optional)
 Dual side manual CPR levers at backrest (optional)
 Bed Extension (optional)
 Battery backup (optional)
 IPX6 standard electronic system

TECHNICAL DETAILS
Overall Length: 216 cm
Overall Width: 102 cm
Height Range: 42-84 cm
Backrest Angle: 0°-70°
Legrest Angle: 0°-35°
Castor Diameter: 12,5 cm
Under bed Clearance: 12,5 cm
Product Weight: 100 kg
Safe Working Load: 200 kg

ELECTRICAL DATA
Power In: 1.5A max. At 230V AC 50-60 Hz
Electrical Shock Protection: Class I, Type B
Liquid Ingress Protection: IPX6
